Kerb Ramps

An economical solution to eliminate the bottoming out or scraping of vehicles, the range of Heeve Kerb Ramps come in a variety of sizes and shapes for various driveways and roadway designs.

Our kerb ramps are manufactured both here in Australia from 100% recycled rubber, as well as overseas using environmentally sustainable processes.

Heeve kerb ramps can be fixed in position using masonry anchors, provide natural traction even in wet condition, and allow water to naturally flow through inbuilt channels.

High-vis ramp models also provide a safe guide for use after dark.

Not only confined to gutters and kerbs, Heeve kerb ramps provides safe access for vehicles, trailers, bicycles, lawn equipment, or warehouse equipment over any transitions in height.

Specifications

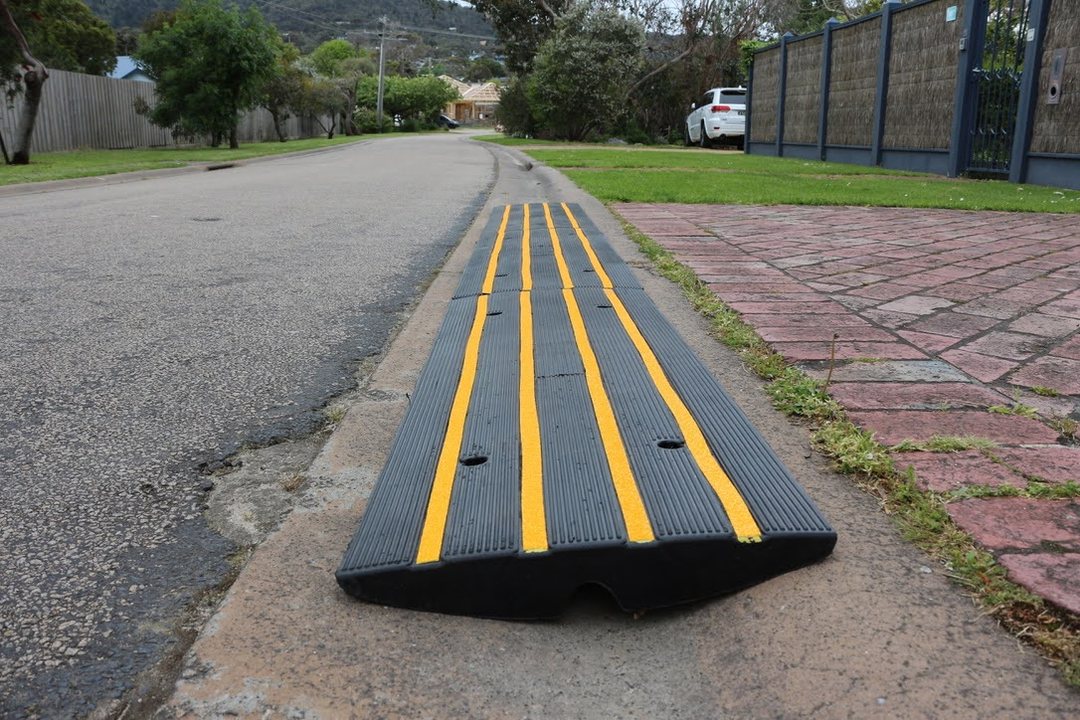

Rolled-Edge Driveway Kerb Ramps Kit

Heeve recycled solid rubber driveway ramp kit for rolled-edge kerb

  • Material: 100% Recycled Solid Rubber
  • Finish: Black with Frosted surface non-slip rubber
  • Dimensions: L1230mm x W410mm x H90mm (in centre)
  • Channel size:
    • Width: 5mm
    • Depth: 3.5mm
  • Weight: 20kg each
  • Load Capacity: 15,000kg
  • Variations: 3.6m kit & 4.8m kit
  • Installation: Butt joint
1.2m Section Rolled-Edge Kerb Ramps

Heeve Driveway Rubber Kerb Ramp in 1.2m Sections for Rolled-Edge Kerb

  • Material: Solid rubber
  • Finish: Black with Reflective strips non-slip rubber
  • Dimensions: L1230mm x W410mm x H90mm (in centre)
  • Channel size:
    • Width: 5mm
    • Depth: 3.5mm
  • Weight: 22kg
  • Installation: Butt joint
1.0m Section Rolled-Edge Kerb Ramps

  • Material: 100% recycled rubber
  • Finish: Black non-slip rubber
  • Dimensions: L1000mm x W390mm x H55mm
  • Channel size: 90mm
  • Weight: 10kg
  • Installation: Butt joint
Straight Edge Kerb Ramps

Rubber straight edge kerb ramp

  • Material:  Rubber
  • Finish: Black non-slip rubber & yellow reflectors
  • Dimensions
    • Small centre module: L500mm x W280mm x H75mm
    • Small end module: L270mm x W270mm x H75mm
    • Large centre module: L500mm x W300mm x H110mm
    • Large end module: L300mm x W300mm x H110mm
  • Channel size
    • Small centre module:
    • Small end module:
    • Large centre module:
    • Large end module:
  • Weight
    • Small centre module:  7.2kg
    • Small end module:
    • Large centre module:  7.5kg
    • Large end module:
  • Installation: Butt joint
Crossover Ramps

Heeve Crossover Driveway rubber ramps

  • Material:  Rubber
  • Finish: Black non-slip rubber
  • Dimensions
    • Centre module: L1000mm x W175mm x H65mm
    • End module: L160mm x W175mm x H65mm
  • Weight
    • Small centre module:  10.8kg
    • End module:
  • Installation: Masonry anchor
